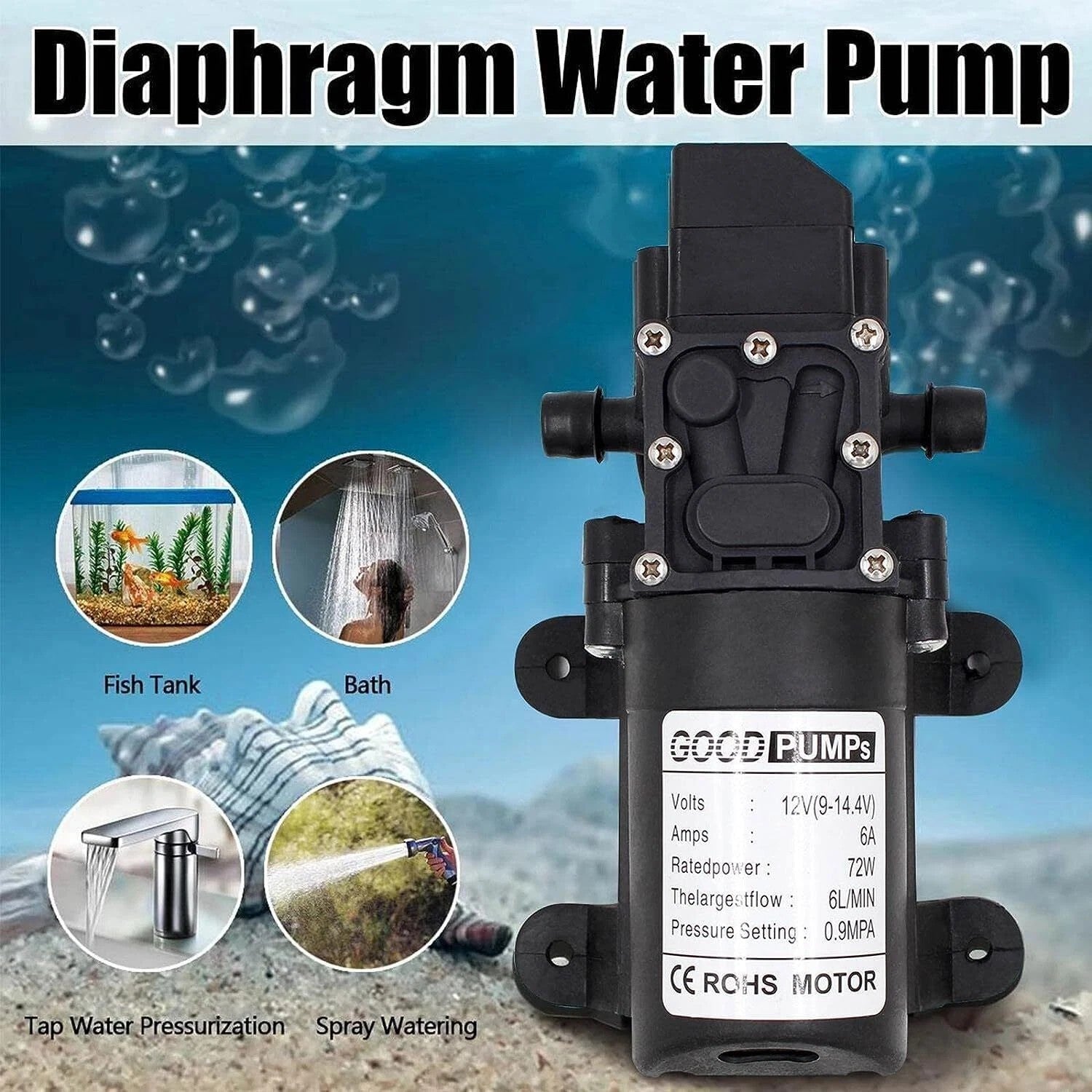

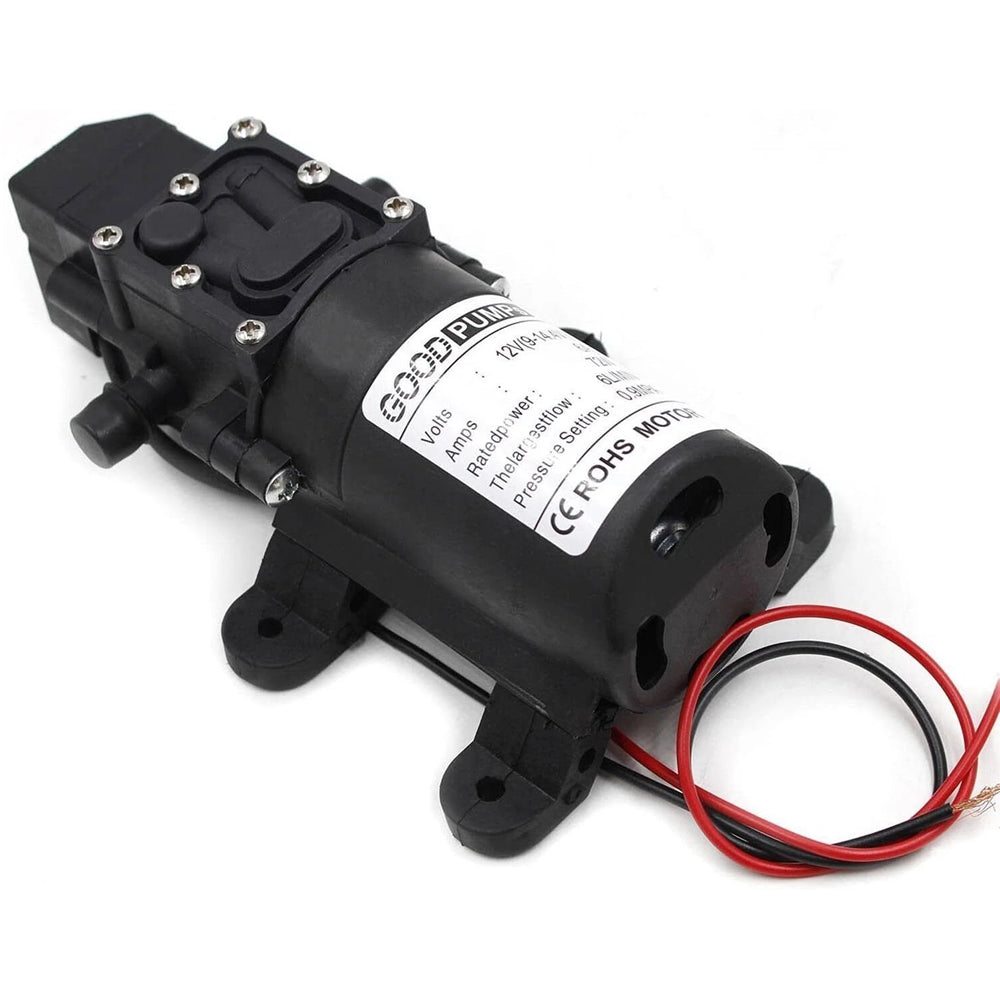

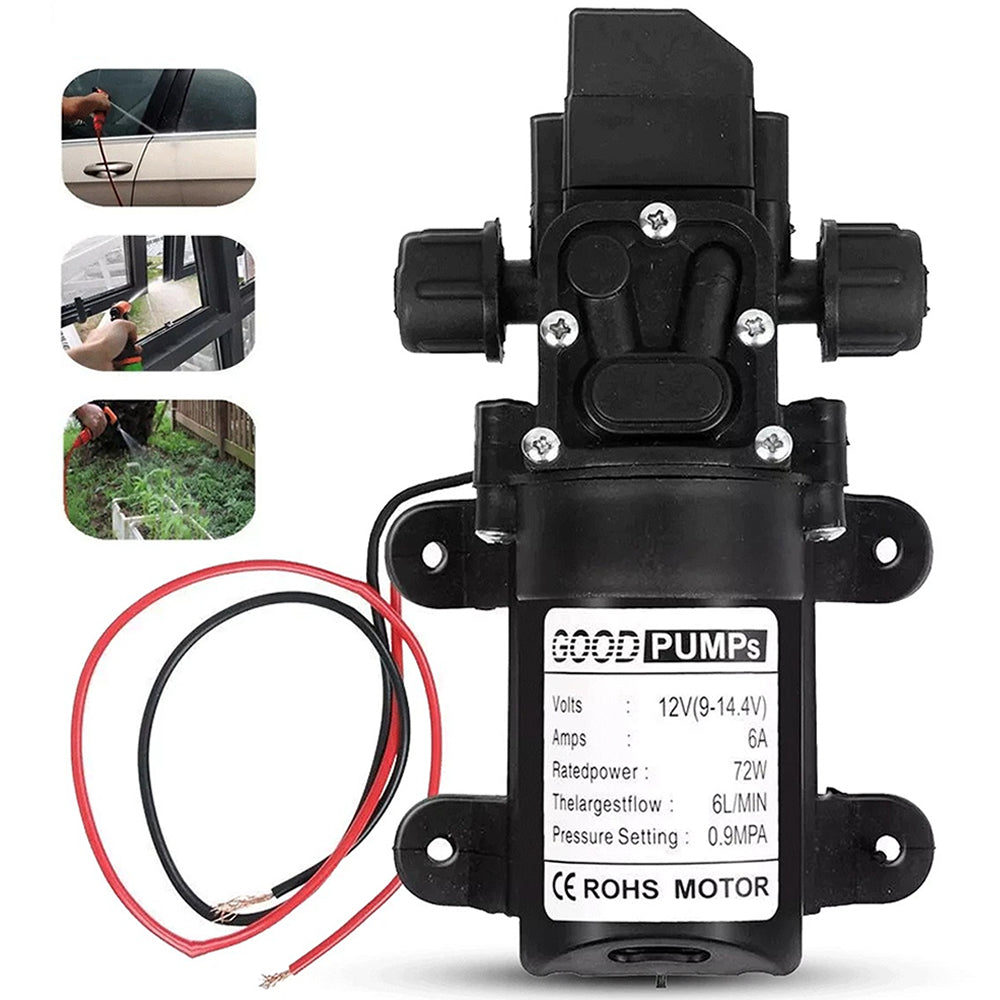

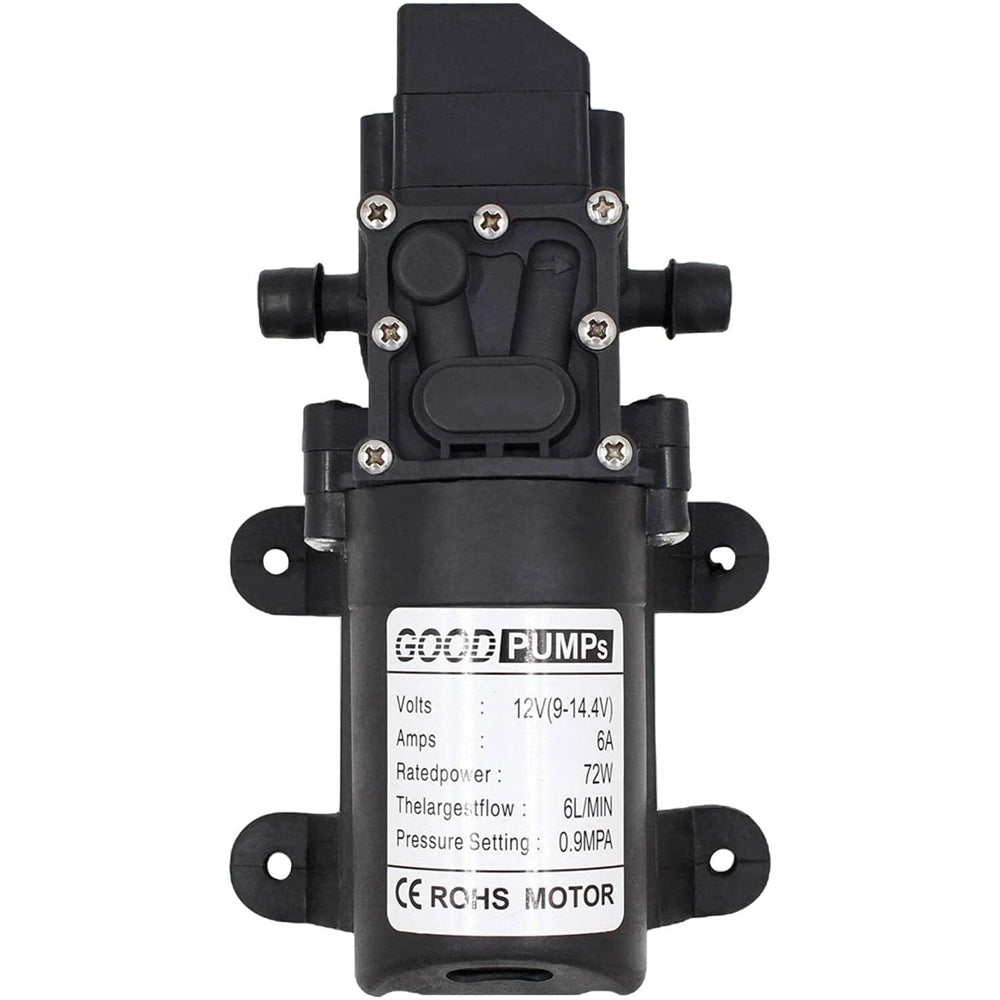

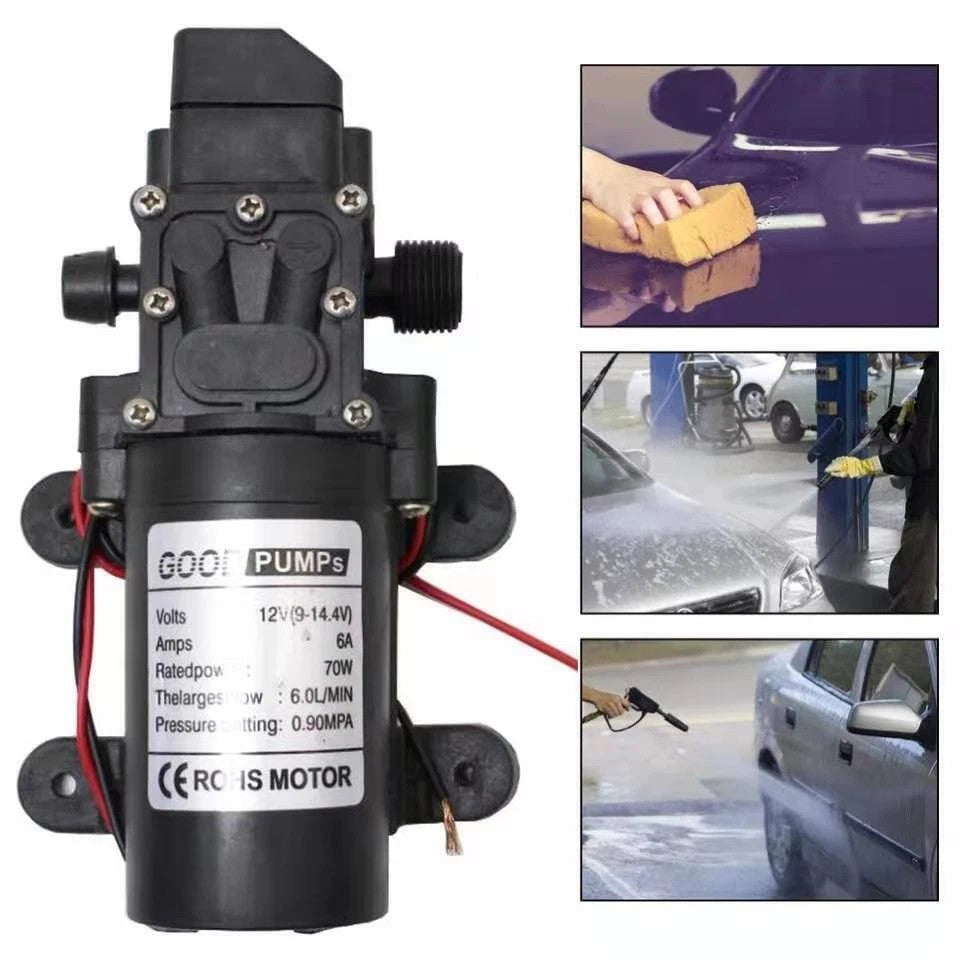

12V Water Pump 130PSI Diaphragm Sprayer Pump 6L/Min with Internal Bypass

Package Includes

• 1 x 12V Diaphragm Water Pump

Reliable High Pressure Pump for Spraying & Irrigation

This heavy duty 12V diaphragm water pump is designed for agricultural spraying, weed control, irrigation and tank transfer systems. Featuring up to 130 PSI pressure and 6L/min flow, it is suitable for a wide range of mobile and off-grid pumping applications.

Important Operating Note

• Manual ON/OFF operation only
• This model does not automatically start or stop with tap pressure
• External switch required for operation

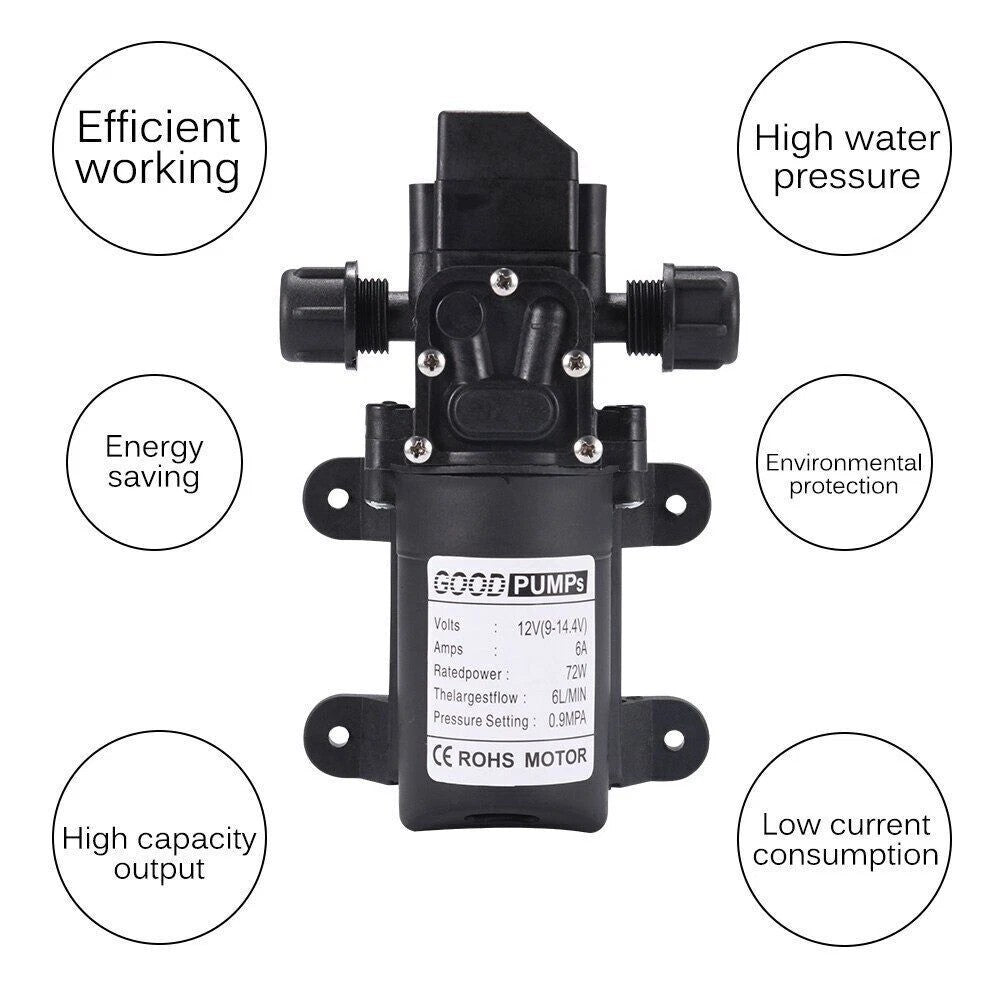

High Performance Diaphragm Pump

• Max Pressure: Up to 130 PSI
• Max Flow: Up to 6 Litres per Minute
• Internal Bypass: Helps maintain pressure stability during continuous operation
• Continuous Duty Capable: Suitable for properly installed systems

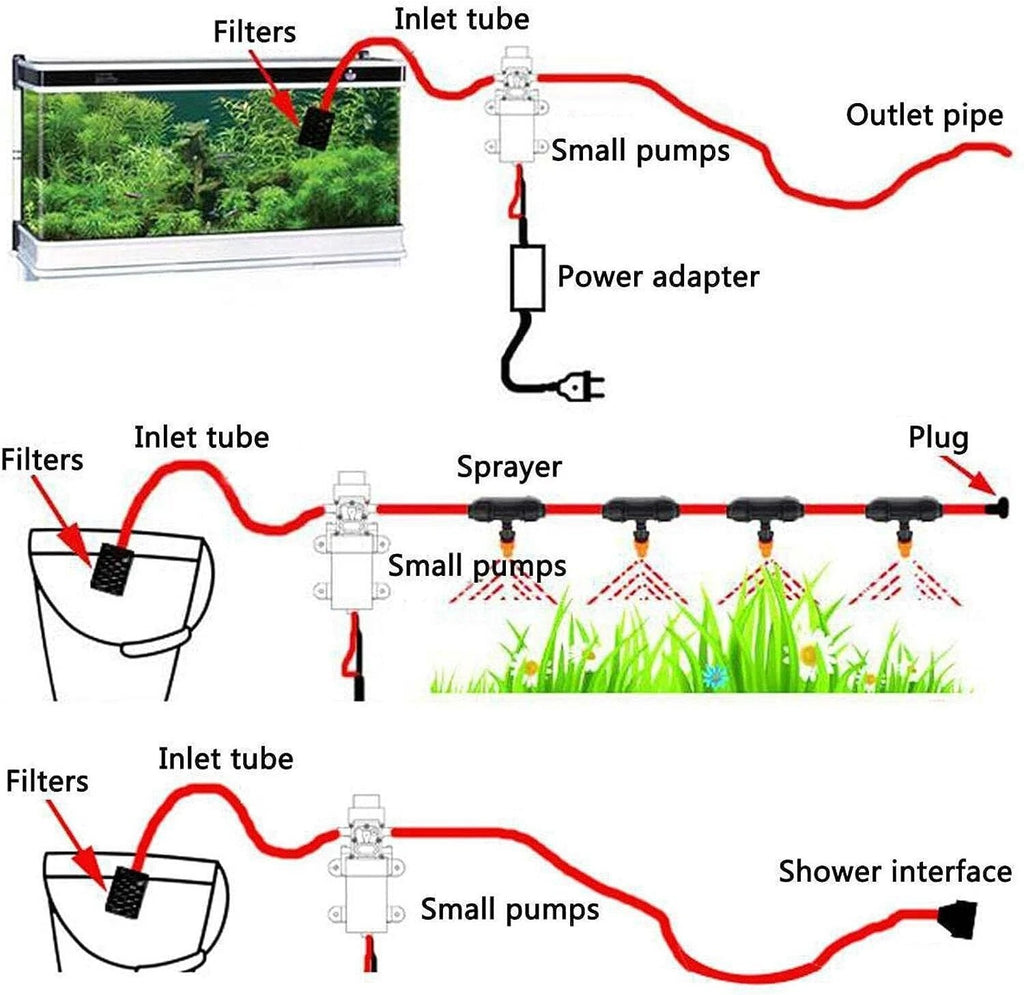

Ideal For Multiple Applications

• Agricultural spray systems
• Weed and pest spraying
• Farm and spray tank setups
• Garden irrigation and misting systems
• Water transfer between tanks
• Mobile spray trailers
• 12V off-grid water systems
• DIY pump installations

Durable & Practical Design

• Diaphragm pump design suitable for spraying applications
• Built-in internal bypass valve
• Threaded outlet suits 8–10mm hose connections
• Compact size for easy installation

Specifications

• Voltage: 12V DC
• Power: 72W
• Max Pressure: 0.9 MPa / 130 PSI
• Flow Rate: Up to 6L/Min (Typical 4–5L/Min)
• Operating Temperature: 0–80°C

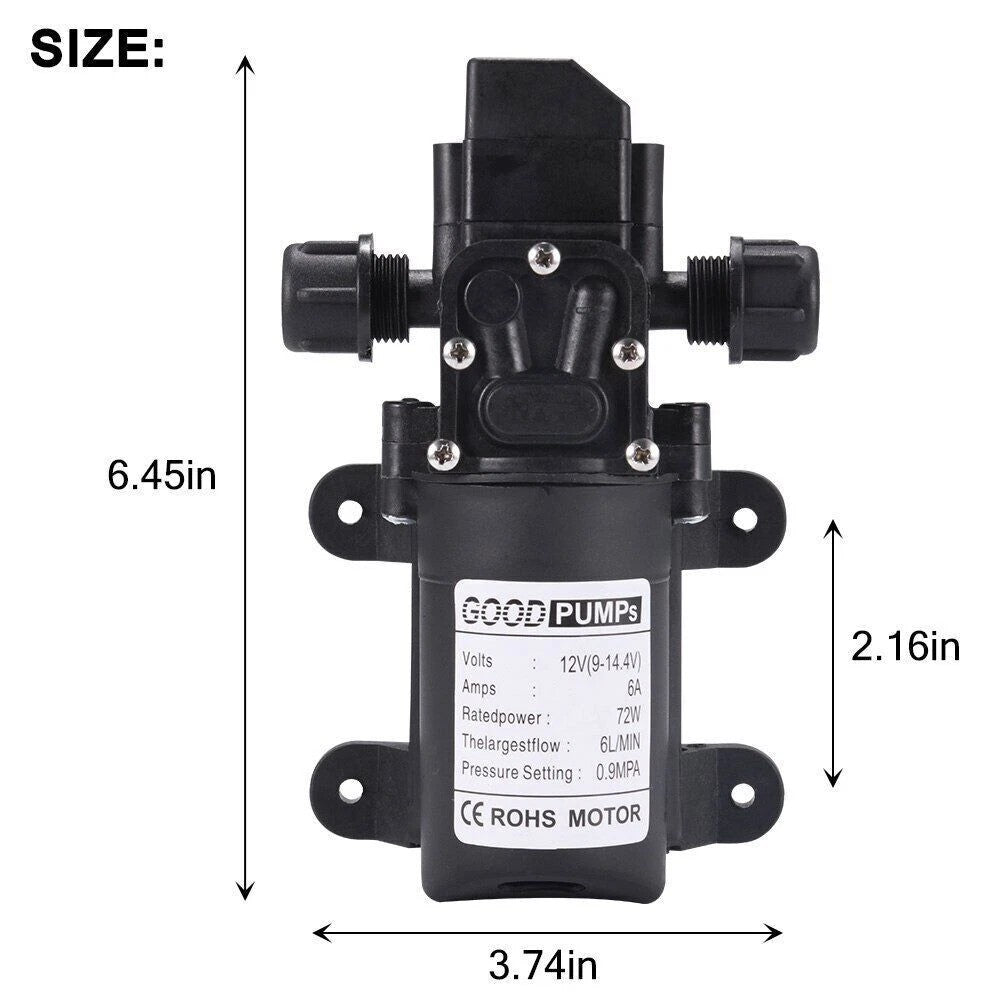

• Size: 165 x 100 x 62mm
• Outlet: Threaded, suits 8–10mm hose

Installation Notes

• Use with suitable inlet filtration
• Do not run dry
• Suitable for return-line bypass systems
• Install according to application requirements

Important Safety Notes

• Inlet filter recommended to help prevent blockages
• Not waterproof – do not submerge
• Not suitable for flammable or explosive liquids

Built for Spraying & Water Transfer Tasks

A practical 12V pressure pump designed for demanding spraying and water transfer applications where reliable pressure and flow are needed.
